CRB Guide Locating Chart – Concept & Micro Guides

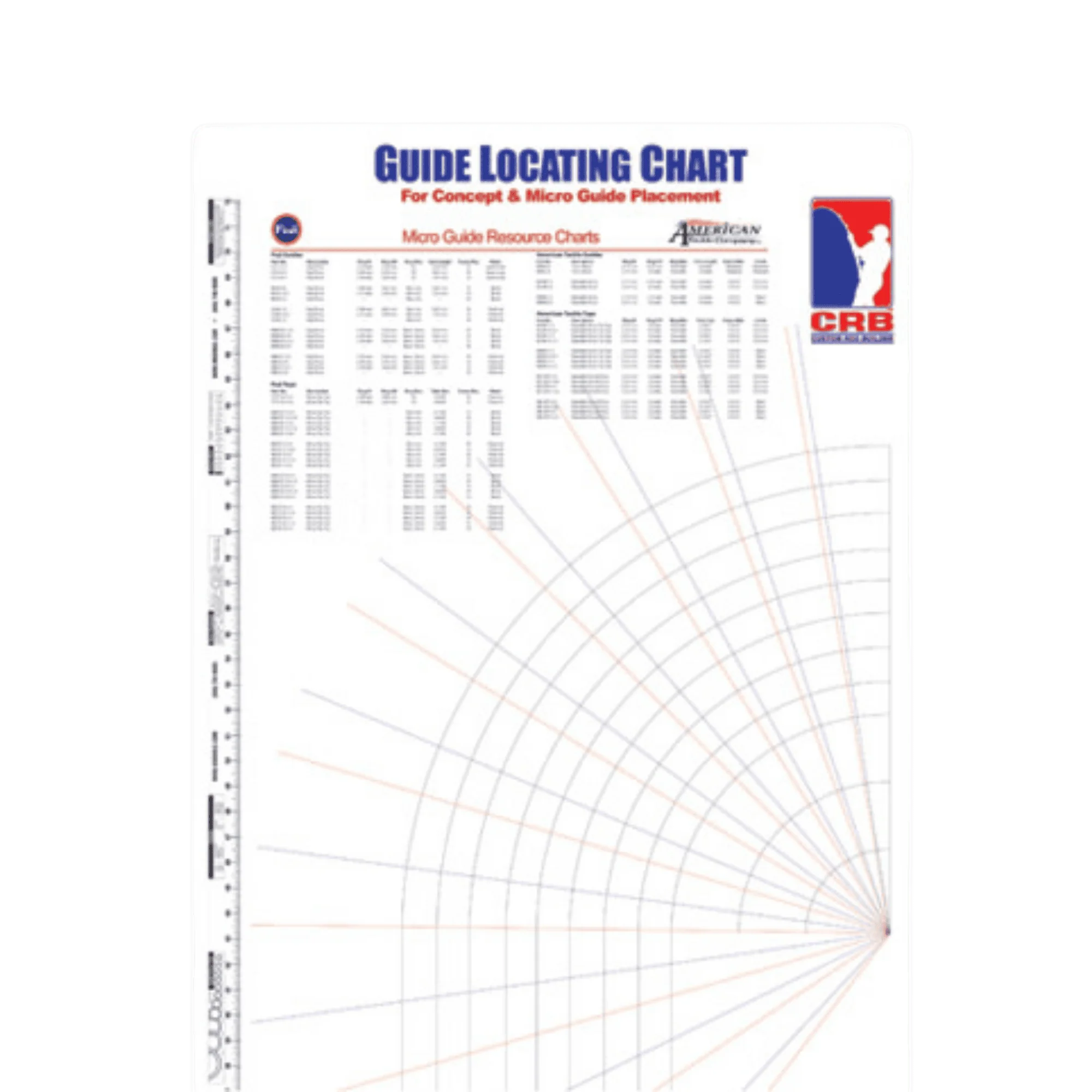

Take the guesswork out of guide placement with the CRB Guide Locating Chart. Engineered to simplify spacing and alignment, this chart uses the angle to the tangent of the blank curve to position guides exactly where your rod flexes most. The result is a build with better support, higher performance, and improved long-term durability.

Designed for both Micro (blue lines) and Concept® (red lines) guide systems, this chart works on virtually any blank and doubles as a comprehensive rod building reference tool. Packed with essential charts, conversions, and a built-in ruler, it’s a must-have for hobbyists and pros alike.

Key Details & Resources:

• Guide placement system: Micro (blue lines) & Concept® (red lines)
• Works on nearly any blank for optimized spacing
• Includes multiple reference charts:
  • Micro guide resources (Fuji & American Tackle)
  • Tip-top & guide-ring sizing
  • Linear, weight, volume & temperature conversions
  • 1/64" to decimal to mm chart + common formulas
• Built-in 72" ruler for accurate measuring
• Usage instructions with full-color photos
• Drawstring system included for blank flex testing

Features & Benefits:

• Accurate placement – Positions guides based on blank flex for maximum performance.
• Dual system design – Supports both Concept® and Micro guide layouts.
• All-in-one tool – Reference charts, conversions, and ruler built in.
• Proven results – Delivers better rod strength, durability, and efficiency.
• User-friendly – Easy to follow with step-by-step instructions and photos.
